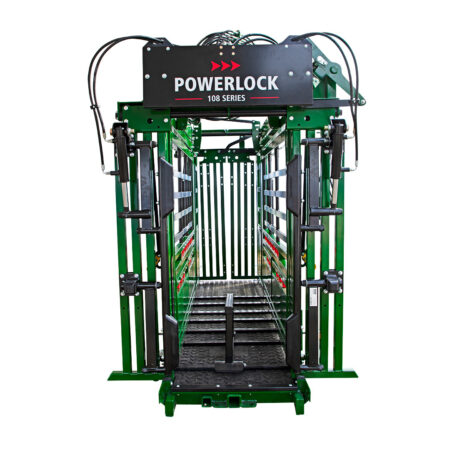

Cage de Contention Hydraulique de la série 108 de Powerlock
La cage hydraulique sur laquelle vous pouvez compter pour une expérience de manutention du bétail sécurisée et sans faille.
Code Produit : 1080
Caractéristiques du Produit | Spécifications du produit
Poids : 1295 kg kg
Dimensions : 1575 - 2515mm (W) x 2591mm (H) x 3683mm (L)
Remplissez ce formulaire pour télécharger votre brochure de :
[ Pour voir de plus près, cliquez sur l'image ci-dessous ]
Caractéristiques du Produit

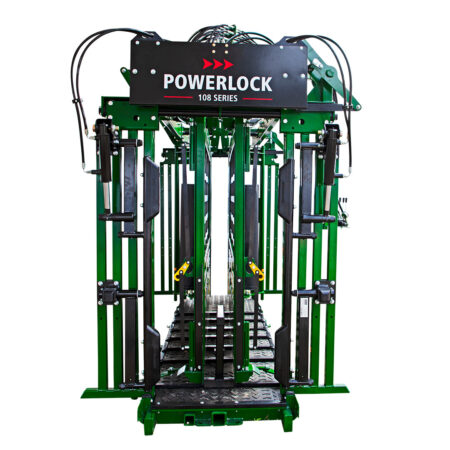

![Powerlock 108 chute in the squeezed position]()
Technologie de l'équipement pour bétail 3E
Arrowquip's exclusive 3E design is found throughout your equipment to make livestock handling easier.
With 3E technology in the head gate and rolling alley door, your livestock will pass straight into the cage. The barred design allows livestock to see the light, drawing them into the cae with minimal handler intervention, allowing you to speed up your process and save time for other important tasks.

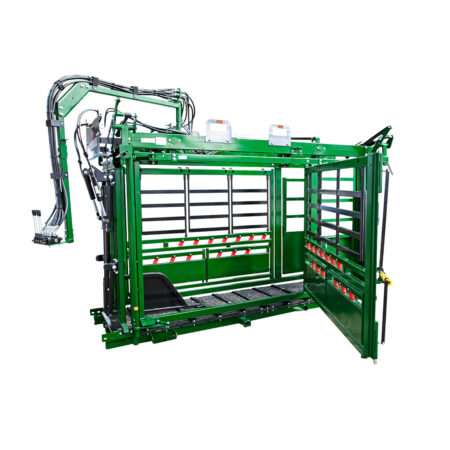

![Powerlock 108 cattle chute with side emergency exit door open]()
Un accès exceptionnel pour le bétail
With 3 access panels on each side, full emergency exit doors and a palpation cage, you get unbeatable access for your livestock to any location in the cage. Thanks to two tilting doors, you can also easily access livestock hooves for trimming or treating them. A livestock cage designed for all sizes of livestock with unrestricted access ensures safer and more efficient operation.

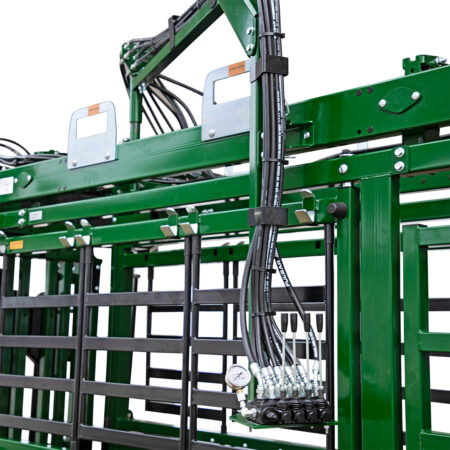

![Close up of hydraulic pivot arm on powerlock 108]()
Plus de puissance, plus de simplicité pour les soins du bétail
Enjoy unprecedented control with the Arrowlock 108 Series Hydraulic Livestock Crate. Improved hydraulic connections and cylinders allow for quick response times so you can catch livestock regardless of their temperament.
Advanced hydraulic systems mounted on a swing arm allow you to have complete control at any location in the livestock cage so you can get the most out of your handling experience.

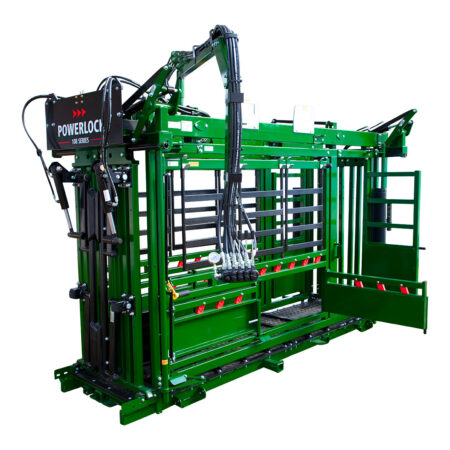

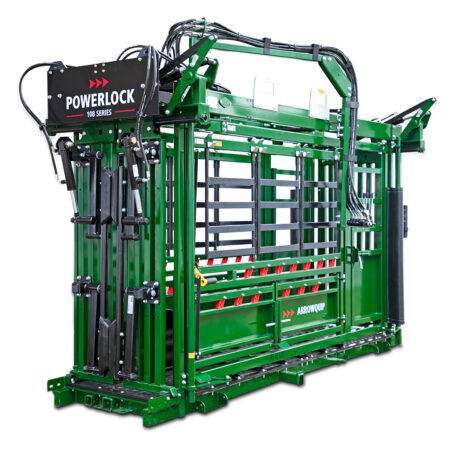

![Powerlock 108 with side door and palpation cage door open 1]()
La possibilité d'une manutention silencieuse du bétail
Livestock handling does not need to be a source of anxiety for you or your livestock. Arrowlock's 108 Series hydraulic cage provides premium maintenance with strategically placed quiet points throughout the equipment to keep your livestock moving calmly through the cage.
The days of metal on metal clanging are now over and handling your livestock is easier and more efficient than ever.
Spécifications du produit
- 15 year warranty

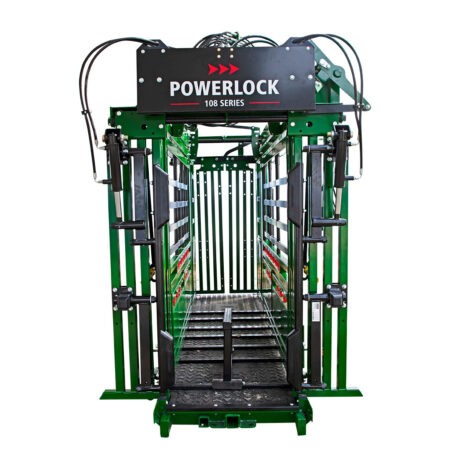

- v Curtain-style head door opens 29.5" from top to bottom.
- v Pressure range varies from 31.5" fully open to 7.75" fully closed.
- Two rows of rump fingers to check for safety, regardless of the size of the animal.
- v Fiberglass rump bar is supplied as standard.
- v 6 ½" injection point at neck level for easy neck access
- v Three side access panels on each side for clear access to livestock's shoulder, back and hips.
- Emergency exit doors for unrestricted access.
- v An infinite real rubber floor provides excellent traction for livestock.
Modules complémentaires / options disponibles
![Head sweep 104]()
Balayage Hydraulique de la Tête
A simple, delicate and effective option that connects to the hydraulic controls of your restraint to hold the animal's head in place with ease.
![Option head holder]()
Le support de tête de bovins de quatrième génération
The fourth generation cattle head support is stronger and more robust than ever. It easily attaches to the head rail and attaches to the cattle's neck so you can treat them up close and safely. Featuring a patented single lever pull and push system, this head support simplifies all necessary procedures.

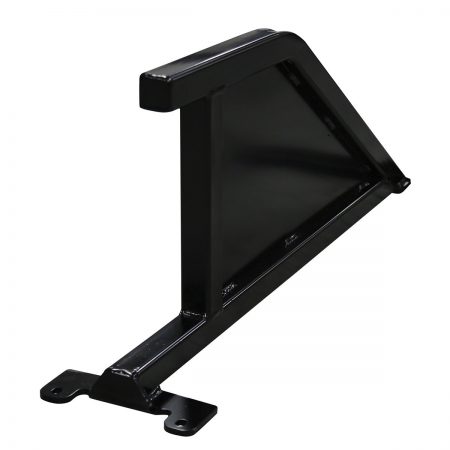

![Option sternum bar]()
Barre de sternum
The sternum bar supports the sternum and eliminates space at the bottom of the cage to prevent cattle from lying down. Arrowquip's sternum bar is foil-covered to reduce hoof traps and can be installed or easily removed using two bolts.
Barrière de sécurité
Even if you can't catch your livestock in the head gate, you can be sure they won't escape with the all-new Arrowquip security gate. This will allow you to create a controlled environment so that you can treat your livestock with complete peace of mind.
![Wheel kit option]()

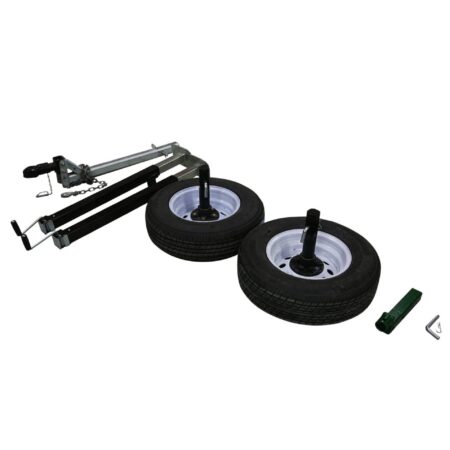

Ensemble de roues
Make your cage portable in no time with a set of wheels. You'll be on the road in no time with quick and easy installation, because we know your time is valuable.
Ensemble de poteaux à ergots
L'ensemble de poteaux à ergots vous permet de connecter des panneaux de corral à votre cage de contention. Il suffit de boulonner les poteaux à ergots sur la porte de tête de votre cage, et vous pourrez connecter des panneaux ou un module de tirage pour créer un système de manutention fermé.
![Option trimming bar]()
Barre de contention des veaux
The calf restraint bar holds your livestock securely when the two side doors are opened for hoof trimming. This simple and effective option can be adjusted to fit different sized cattle and installs with just four bolts.
![Powerpack electric]()

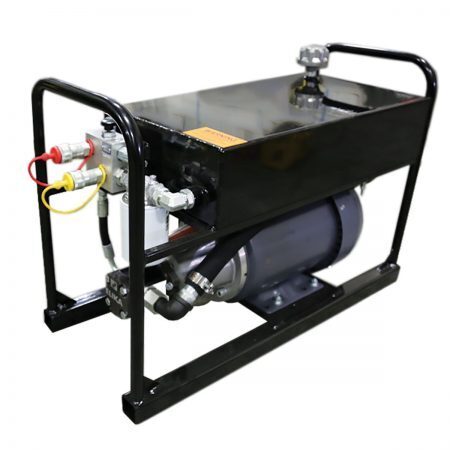

Bloc d'alimentation hydraulique électrique
5HP electric motor. Operating pressure is 900PSI, with pressure limit set at 1000PSI. The 10 gallon tank provides 6.2 GPM. The Pioneer female ends of the power supply allow direct connection of the cage connection hose.
![Powerpack gas]()

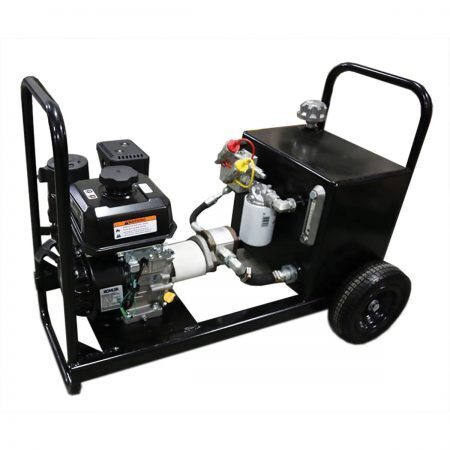

Bloc d'alimentation hydraulique à gaz
7HP gas engine. Operating pressure of 900PSI, with pressure limit set at 1000PSI. The 10 gallon tank provides 6.2 GPM. The Pioneer female ends of the hydraulic unit allow the cage connection pipe to be directly connected.
![Tractor hookup]()

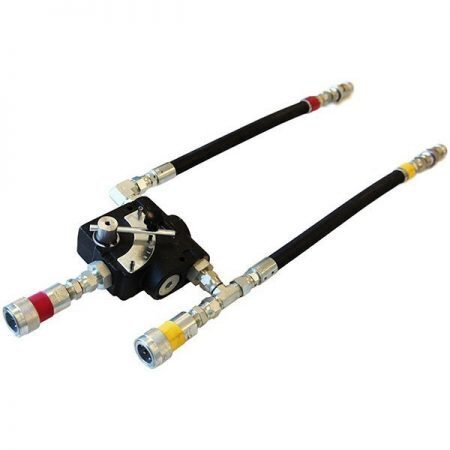

Prise Hydraulique pour Tracteur
Allows the crusher to be powered from the hydraulic system of a tractor or other hydraulic equipment.
Bloc d'alimentation électrique Stealth Upgrade
The NEW Stealth Upgrade Power Supply is a virtually silent power source with a 7.5 HP electric motor. Operating pressure is 900 PSI, with relief set at 1000 PSI. The 10 gallon tank provides 10.9 GPM. The Pioneer female ends of the power supply allow direct connection of the cage connection hose.
